	  <tr><td class="BlackCenter18pt">
	  We<a name="retool_"> retool </a>your Hot Stamping Machine for any
	  new application you have.&nbsp; We offer a complete solution including
	  Fixture, Die and Foil or Transfer selection. Once we have your project
	  running we offer training to make sure you a able to produce your parts.&nbsp;
	  Once you have your project in house we offer phone support.
	  </td></tr>
	  <tr><td><span id="ctl00_ContentPlaceHolder_Lab_PicturesApplications"></span><hr style="height:2px;border-width:0;color:gray;background-color:gray" /></td></tr>
	  <tr><td class="BlackCenter18pt">

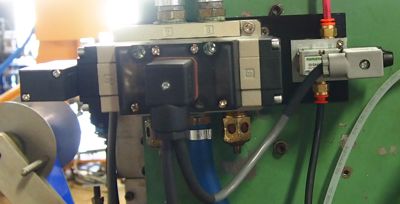

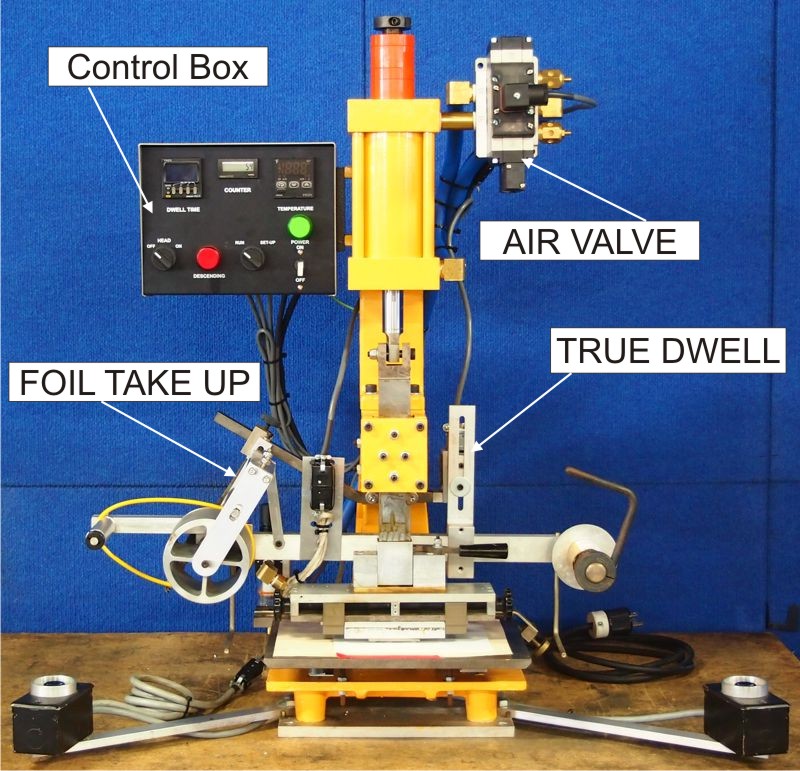

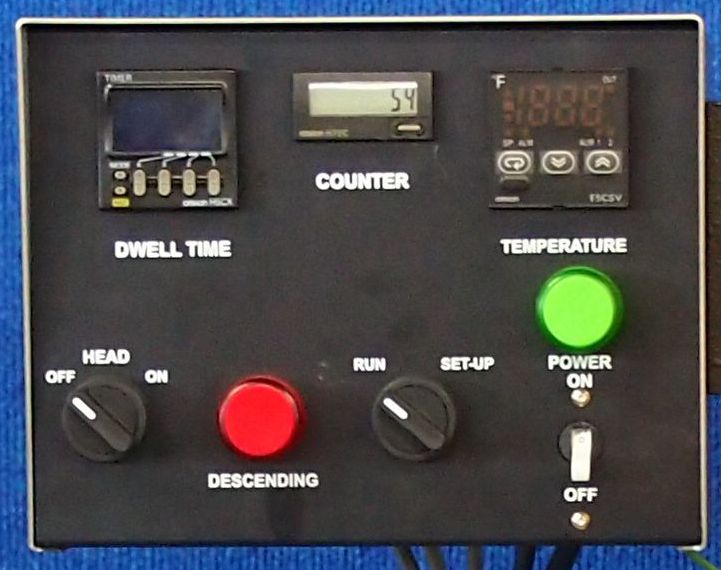

	  We <a name="rebuild_">rebuild</a> Hot Stamping Machines.&nbsp; We will take your machine change
	  both the Electronics and Pneumatics giving your old machine new life and
	  giving it functions it never had.</td></tr>
	  <tr><td><span id="ctl00_ContentPlaceHolder_Lab_PicturesRebuiltMachines"></span><hr style="height:2px;border-width:0;color:gray;background-color:gray" /></td></tr>
	  <tr><td class="BlackCenter18pt">
	  We offer <a name="Upgrade_">Upgrade</a> Kits to help you keep your Hot Stamp Machines Running.
	  <a href="/UpGrade_Franklin/default.aspx">More Information</a></td></tr>
	  <tr><td><span id="ctl00_ContentPlaceHolder_Lab_PicturesRetofit_Kits"></span><hr style="height:2px;border-width:0;color:gray;background-color:gray" /></td></tr>
	  <tr><td class="BlackCenter18pt">
	  	<a href="../We_Buy_Machines/Default.aspx">We buy used Hot Stamping Machines</a></td>
